MAKE THE ROAD YOUR ARENA
The Invictus range truly caters to today’s modern and adventurous traveller planning their trip of a lifetime. Boasting a high-quality finish,
durable exterior and superb craftsmanship, the Invictus offers the best of both luxury and ruggedness.
This van has been designed to have a superior finish & is equipped with a number of high end appliances and safety features.
-

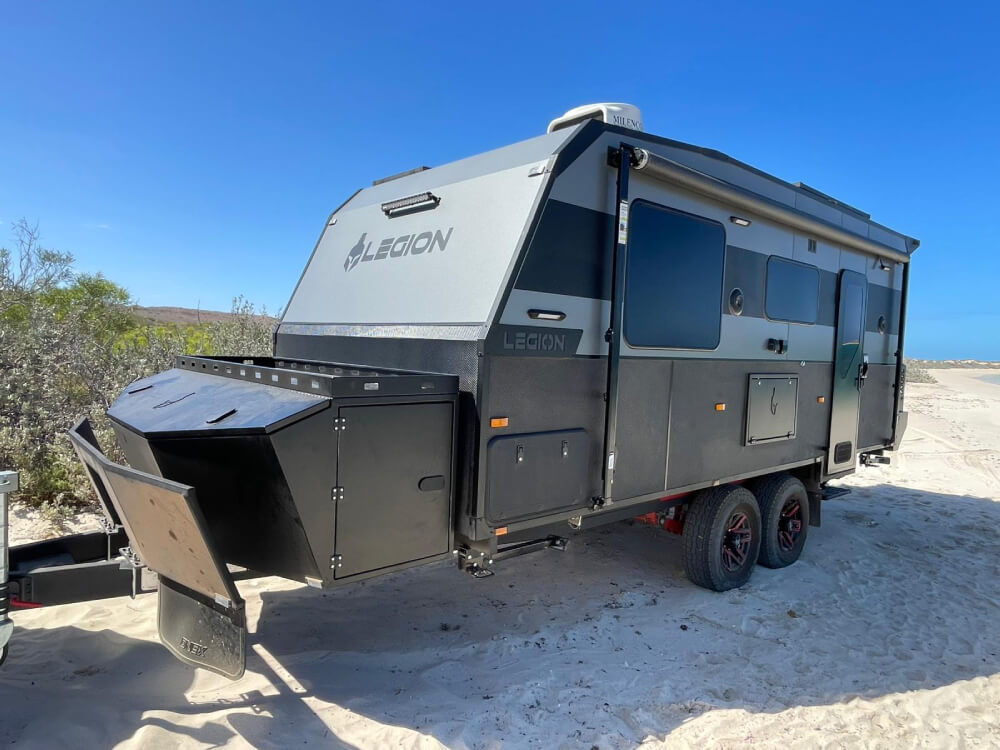

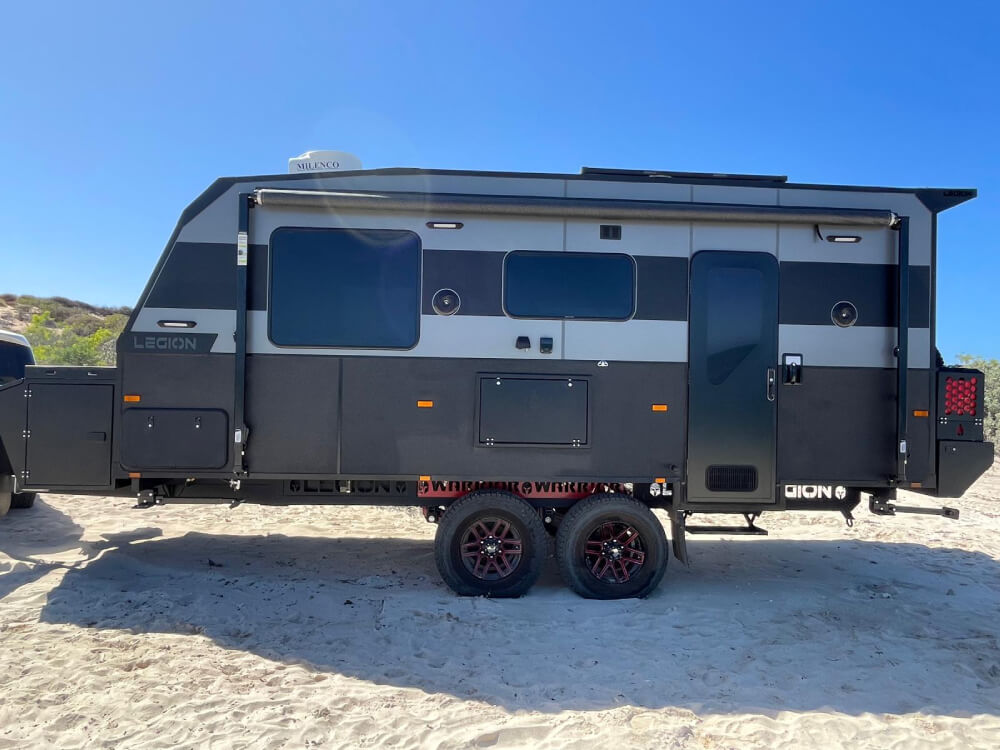

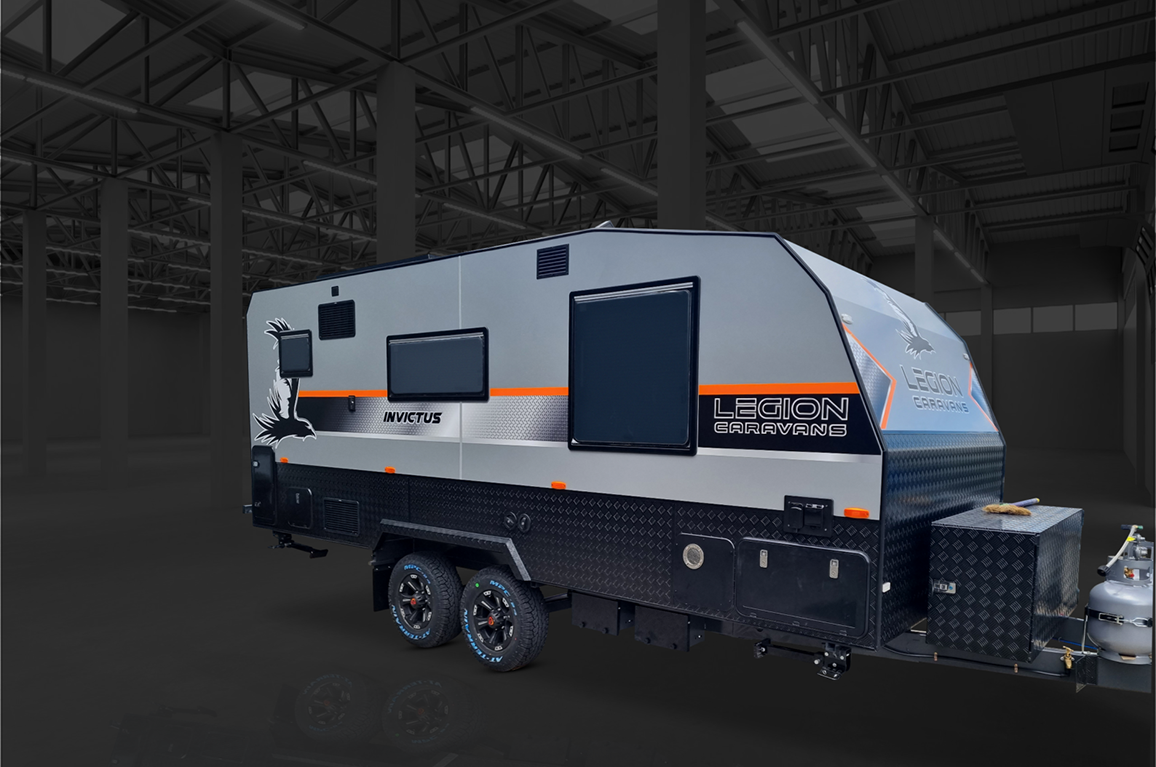

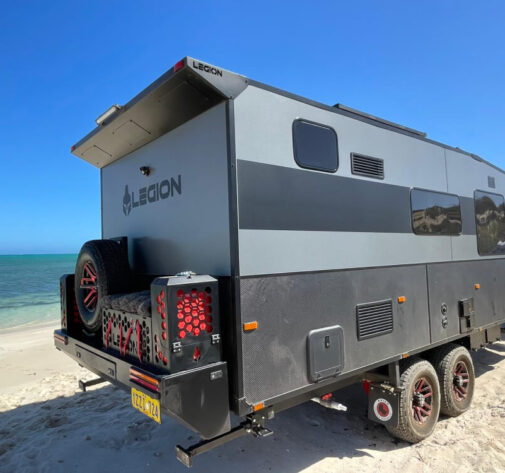

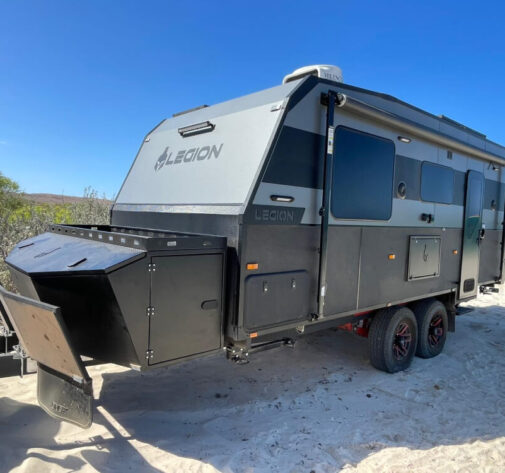

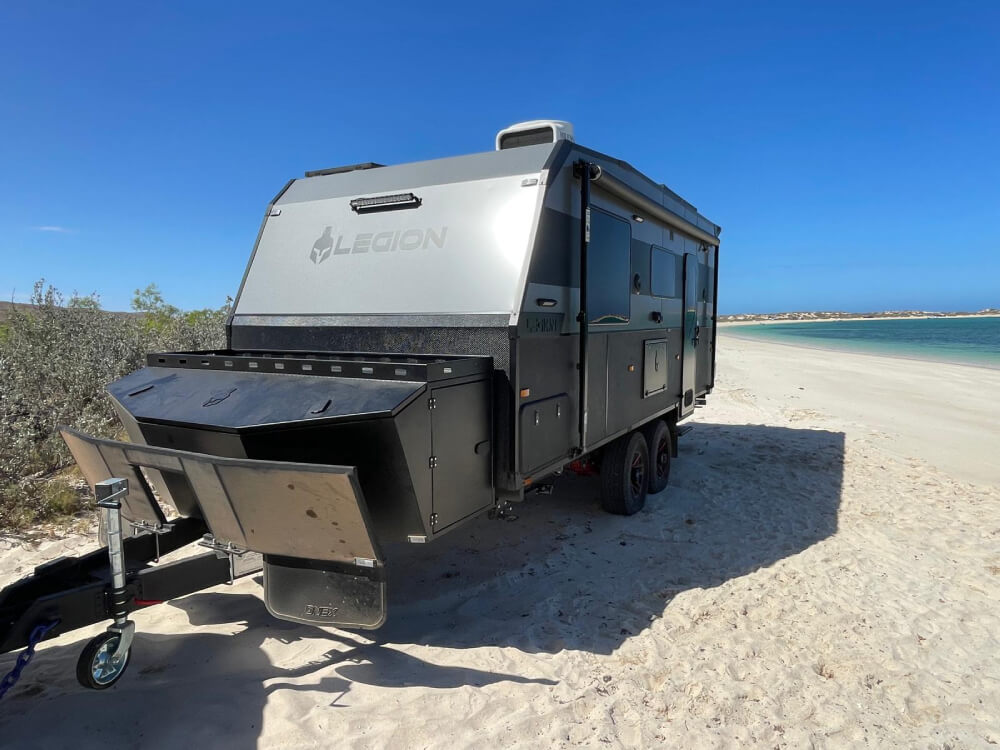

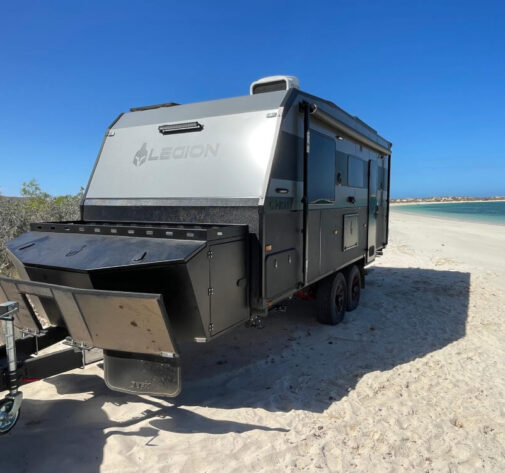

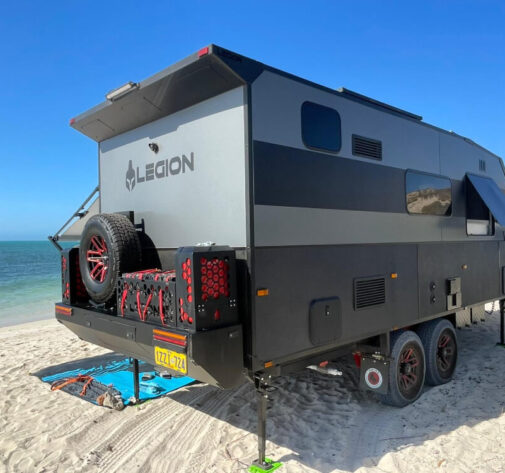

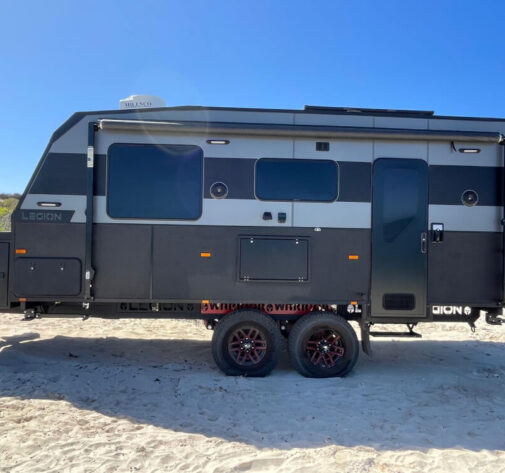

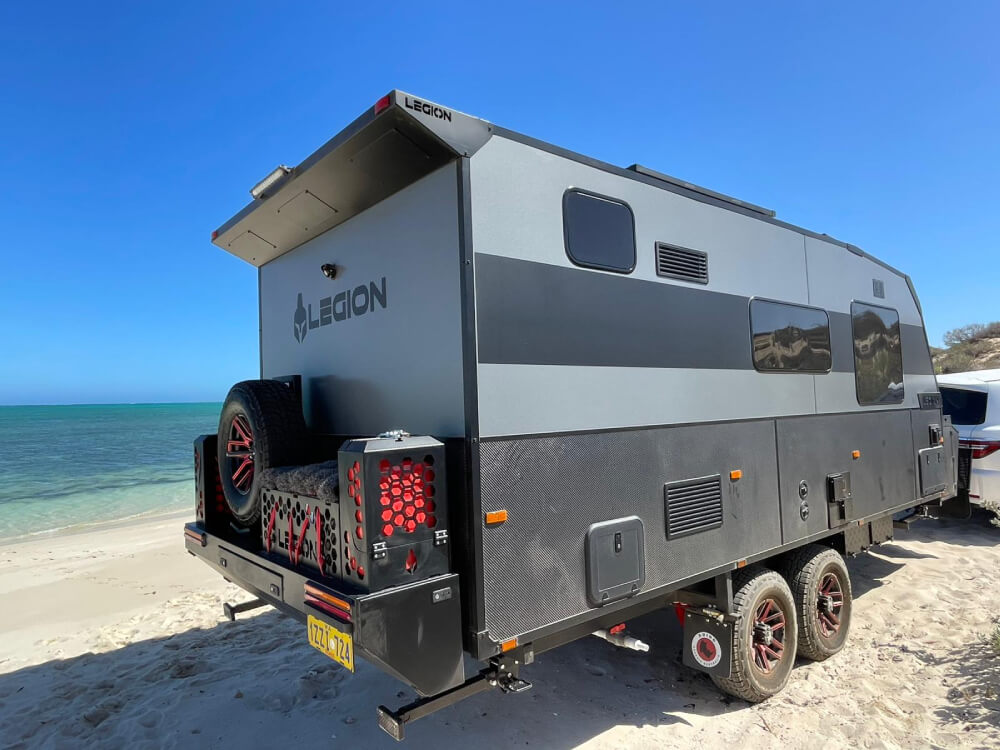

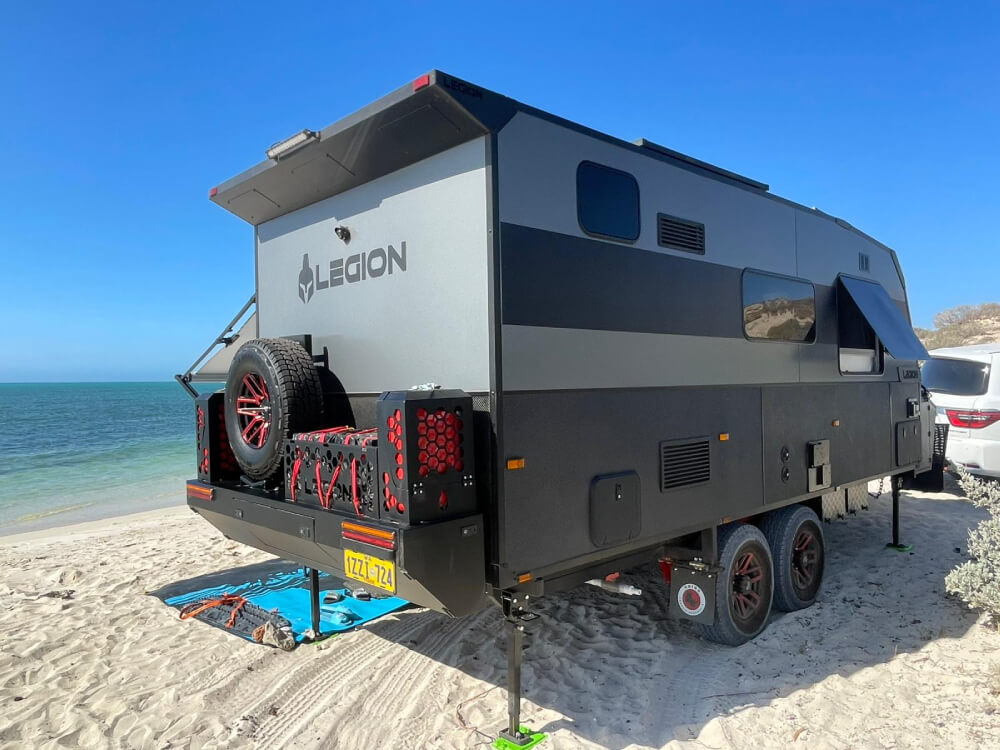

EXTERIOR
The Invictus by Legion Caravans has been designed to have a superior finish & is equipped with a number of high end appliances and safety features.
Premiun decals, toolbox, reverse camera, alucomp finishing and a fibreglass roof as standard make the Invictus a stand out in the crowd. -

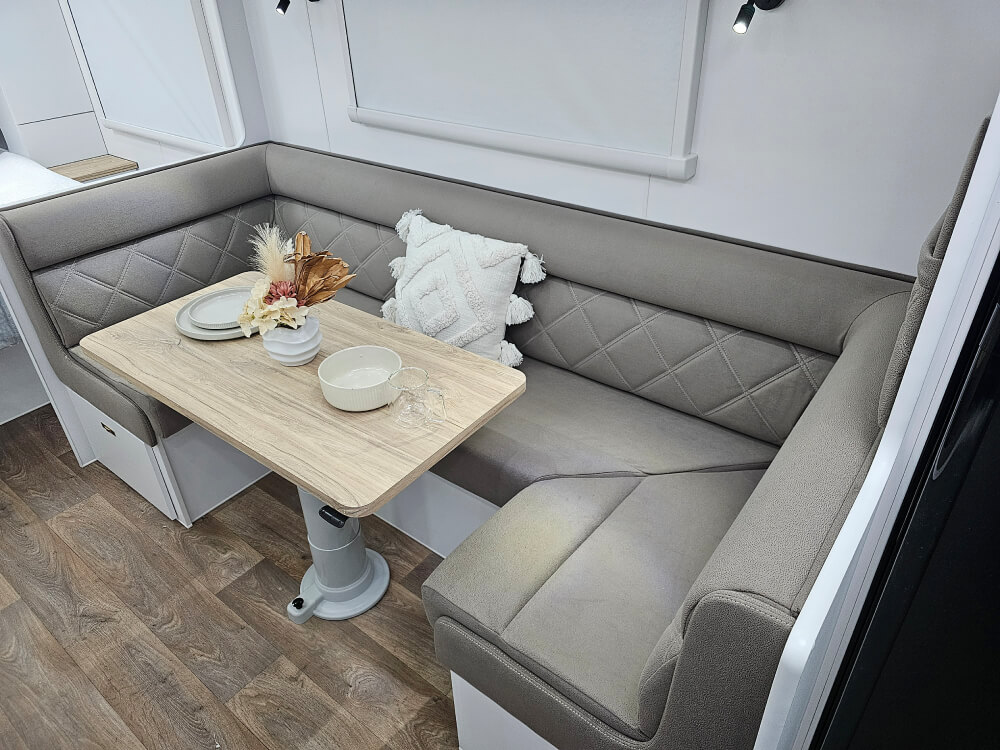

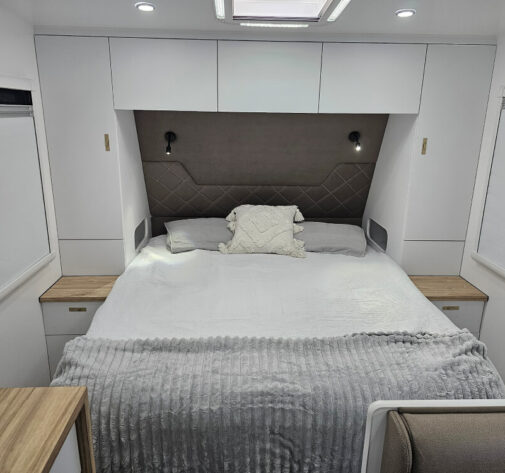

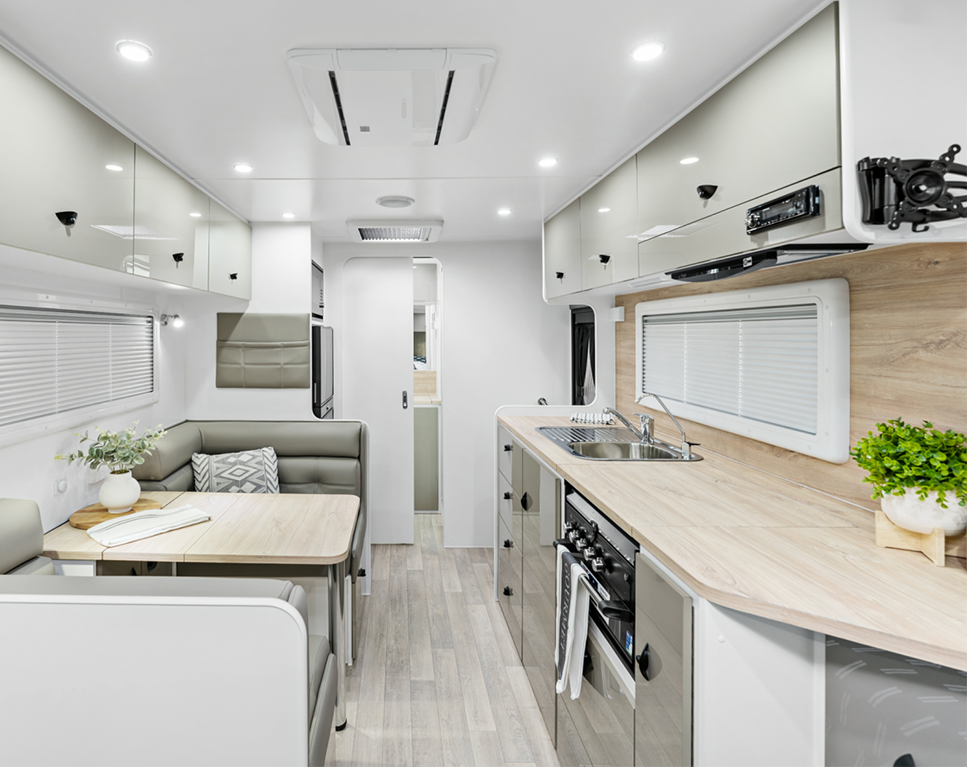

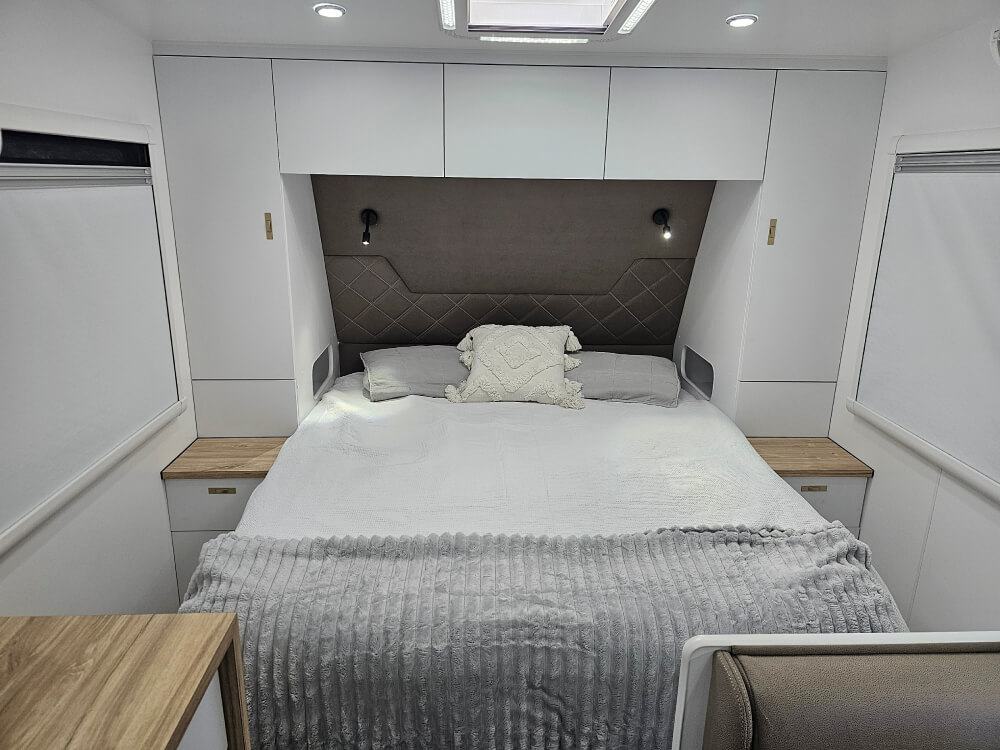

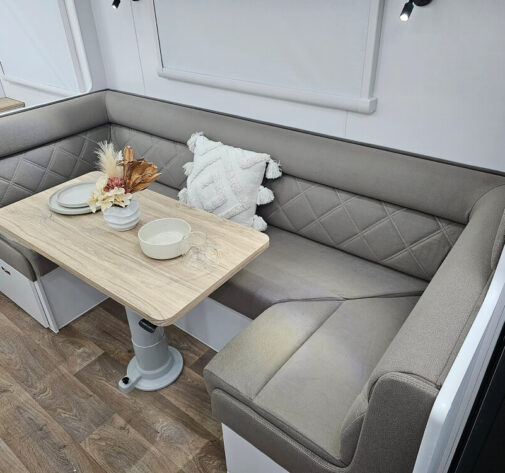

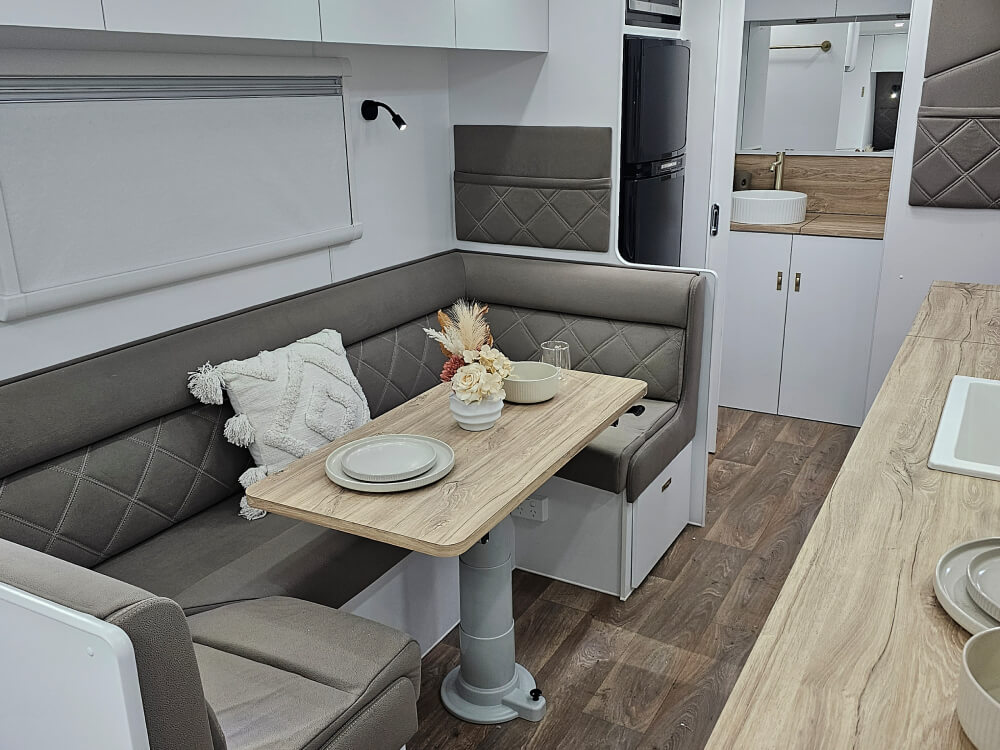

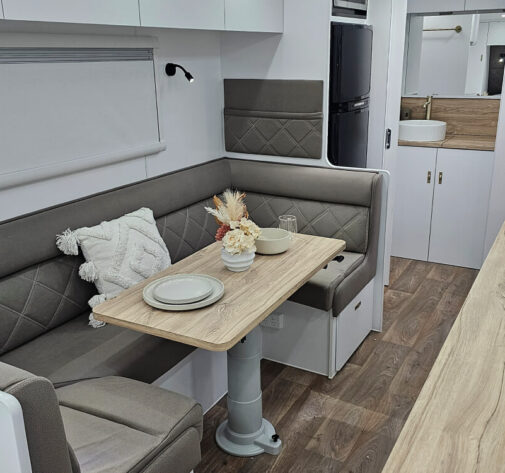

INTERIOR
The Invictus range truly caters to today’s modern and adventurous traveller planning their trip of a lifetime.
Boasting a high-quality finish, durable exterior and superb craftsmanship, the Invictus offers the best of both luxury and ruggedness.
This van has been designed to have a superior finish & is equipped with a number of high end appliances and safety features.
TRAVEL AND ADVENTURE AWAITS IN THE INVICTUS!
Be unstoppable on your journey

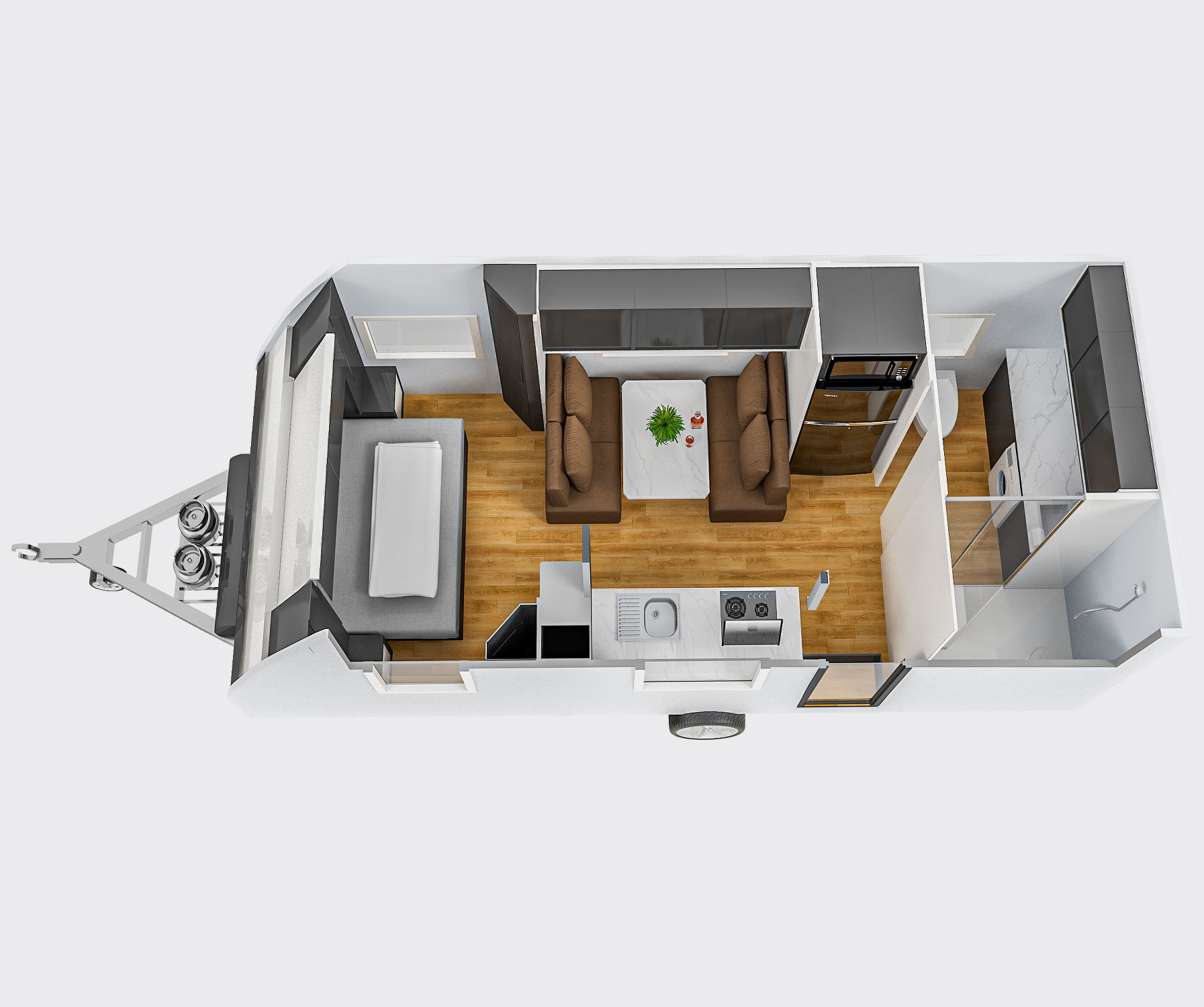

Available in a wide range of layouts for touring, family bunk vans as well as the ultra-luxurious and class leading upgrades available.
Engineered and designed to be enjoyed for many years to come, come and experience the unbeatable Invictus.
DIMENSIONS
-
Legion Invictus Dimensions
Layout: 186 (Tandem axle)
Tandem Axle
Exterior Overall Length: 7840mm
Average Ball Weight: 230kg
Average Tare Weight: 2380kg
ATM: 3200kg
-
Legion Invictus Dimensions
Layout: 19’6
Exterior Overall Length: 7875mm
Approx Ball Weight: 120-150kg
Average Tare Weight: 2450kg
ATM: 3200kg
TECHNICAL SPECIFICATIONS
- Supagal Australian Made Chassis
- 6” Main Frame
- 6” A-Frame through to suspension
- Extended A-Frame
- 2” Raiser
- 3.2T ALKO Roller Rocker Suspension
- 10” Electric Brakes
- 50mm Ball Coupling
- Black/Silver 16” Alloy Wheels
- 245/75R/R16 Tyres
- 4 Easy Drop Jacks
- Heavy Duty 3 Arm Bumper
- 8” Jockey Wheel
- Aluminium Pull Out Step
- Spare Wheel Fitted to Bumper Bar
- Mud Flaps
- Tool Box
- Main Door R/H Black
- Front Tunnel Boot 2 x Access Doors
- Picnic Table Black
- Quality Roll Out Awning
- Double Glazed Windows
- 2 x Power hatches
- 2 x Mini Hatches
- External Access Doors
- Premium Decals
- Security Mesh Locking Door 2
- Aluminium Wheel Spat
- Checker plate front back and sides
- Composite Cladding
- Picnic Table
- Full Insulation
- Bargman Grab Handle with light
- Dust Hatch Black
- Tool Box
- Aluminium Step
- Premium Vinyl Flooring
- CNC Hybrid Furniture
- Soft close drawers
- Premium Upholstery
- Lift Up Under Bed Storage
- Cook Top with Laminex Lid
- Push Pull Handles
- Struts to all OHC
- Innerspring Mattress – Queen or Single Beds
- Lift Up Slattered Base for Bed
- Splashback in kitchen and ensuite
- Mirror in Ensuite
- Latches with Soft Open Gas Struts
- TV Bracket
- Smoke Detector
- Fire Extinguisher
- Glass Door Shower
- Door to Ensuite
- Splashback & Laminate Benchtops
- 1 x Towel rail
- 1 x Toilet roll holder
- Nuova Mapa Telescopic and Adjustable Table Leg
- Full Height Fibreglass Shower
- Slide out pantry
- Gas/Electric HWS
- 1 x 12V Water Pump
- 2 x 9Kg Gas Bottles on A-Frame
- Thetford cassette Toilet
- Ceramic Toilet Bowl
- Kitchen Sink Square
- Ensuite Sink Round or square
- Flick mix tapin Ensuite
- Shower Rose on Flexi Hose
- Mains Pressure Inlet
- Tap on A-Frame with stone shield
- Top Loader Washing Machine 3.2Kg
- External Gas Bayonet
- Lockable Water Fillers
- Tempering Valve
- 2 x 95L Water Tank
- External Shower
- LED Lights Throughout
- 3 x LED External Annexe Light
- 2 x LED Reading Lights in Bedroom and bunks
- 12 Pin Flat Plug and Anderson Plug
- Break away switch
- Wineguard TV Antenna
- Double Powerpoints throughout
- 1 x LED Tunnel Boot Light
- LED Side Markers, clearance and tail lights
- 2 x 120 Amp AGM Batteries
- BM Pro Battery Management System
- 2 x 210 W Solar Panels with regulator
- Roof Top Digital Amplified TV Antenna
- 24” Flatscreen TV
- CD/DVD?MP3 Radio Player
- 2 x Internal Speakers
- 2 x External Speakers
- 3 x Gas and 1 x 240V Hotplates with Mini Grill
- Microwave Oven
- Gas/Electric Hot Water System
- Air Condiotioner
- 12V Rangehood
- Three Way Fridge
- Water Tank Gauges
- Reversing Camera and Car Monitor Kit
- 12V Fan Hatch to Shower & Toilet
